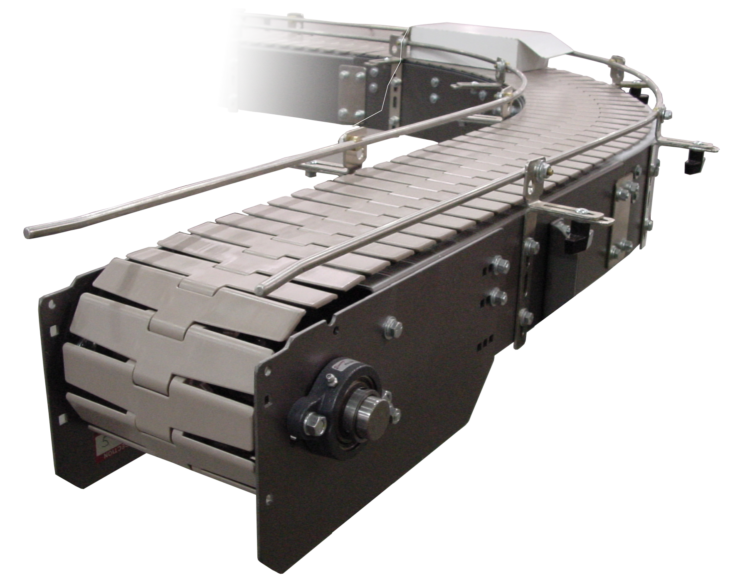

Dillin table top conveyor systems provide a stable conveying surface for moving products through production, packaging, and material-handling operations. Systems can be configured around different product sizes, production requirements, conveyor layouts, and operating environments.
Available with multiple chain widths, frame materials, speeds, guide rail configurations, and layout options, Dillin table top conveyors can support both straightforward product transfer and more complex conveyance requirements. They can also be integrated with upstream and downstream equipment as part of a broader automated production line.
For a closer look at the technology, components, and operating principles, see our guide to how table top conveyors work
Dillin table top conveyor systems can be configured to match different product-handling requirements, production environments, and line layouts. Available options include multiple chain widths, frame materials, speed configurations, guide rails, and conveyor layouts.
| Specification | Available Options / Features |
|---|---|
| Frame Construction | 11-gauge painted steel or stainless steel |
| Chain Widths | 3-1/4", 4-1/2", 7-1/2", 10", and 12" |
| Conveyor Speed | Fixed or variable speed configurations |
| Conveyor Length | Custom lengths based on application requirements |
| Conveyor Layout | Straight runs and configurable curve angles |
| Guide Rails | Adjustable guide rail configurations |
| Wear Components | Wear strips incorporated into the conveyor design |
| Supports | Adjustable conveyor supports |
| Sanitary Options | Configurations available for applications requiring sanitary construction |
Final conveyor specifications are determined by the product, required throughput, line layout, operating environment, and integration requirements.
Dillin table top conveyors are designed for controlled movement of products that benefit from a stable conveying surface and consistent positioning throughout the production line. Their configurable widths, speeds, guide rails, and layouts allow the system to accommodate a range of container and package formats.
Supports controlled product movement through conveying, accumulation, and downstream production processes while maintaining consistent positioning along the line.
Provides stable transport for cartons and packaged goods as they move between processing, packaging, and other production-line equipment.
Configurable guide rails and conveyor layouts support products that require added stability and control as they travel through the production line.
Supports product conveyance across food and beverage, pharmaceutical, personal care, consumer goods, and other automated production environments.
Table top conveyor systems can be configured around product characteristics, line layout, production requirements, and operating conditions. Common configurations include straight and curved layouts, single- or multi-lane systems, sanitary designs, and solutions designed to support accumulation.
A table top conveyor often operates as one part of a larger product-handling system. Dillin can integrate table top conveyors with complementary conveyance, accumulation, and control solutions to support coordinated product movement throughout the production line.
Depending on the application, table top conveyor systems can work alongside traffic cop merges, accumulation tables, and intelligent control modules, as well as other Dillin conveyor technologies such as AIR DECK conveyors, Mat Top conveyors, and SOFT-TOUCH systems. For heavier-duty handling requirements, Dillin also offers BDLR and CDLR conveyor systems.
This system-level approach allows individual conveyor components to be configured around the overall production flow rather than treated as isolated pieces of equipment.
Let’s talk about your project goals and how Dillin’s Table top conveyor systems can support your production line. Whether you’re exploring options or ready to purchase, our engineers are here to help. Contact us by calling 419-664-5052 today!
